SPECIFICATIONS Audio : Optional/default are not

Audio Output : None

Certification : NONE

Connectivity : IP/Network Wired

Dimensions (L x W x D)(mm) : 20*75MM

High Definition : NONE

Installation : Embedded

Internal Storage : None

Lens Quantity : Single Lens

Megapixels : 2 MP

Minimum Illumination(Lux) : 0.01lux

Power Consumption(W) : 5v

Power Supply : Normal

Sensor Brand : Omnivision

Special Features : Waterproof / Weatherproof

Style : Mini Camera

Supported Mobile Systems : Android

Supported Operating Systems : Windows XP,Windows Vista

Video Compression Format : MJPEG

Viewing Angle : 90°

Zoom type : None

cOMPETABILE : uvc

for : industry&equipment

formate : mjpeg /YUY2

is_customized : Yes

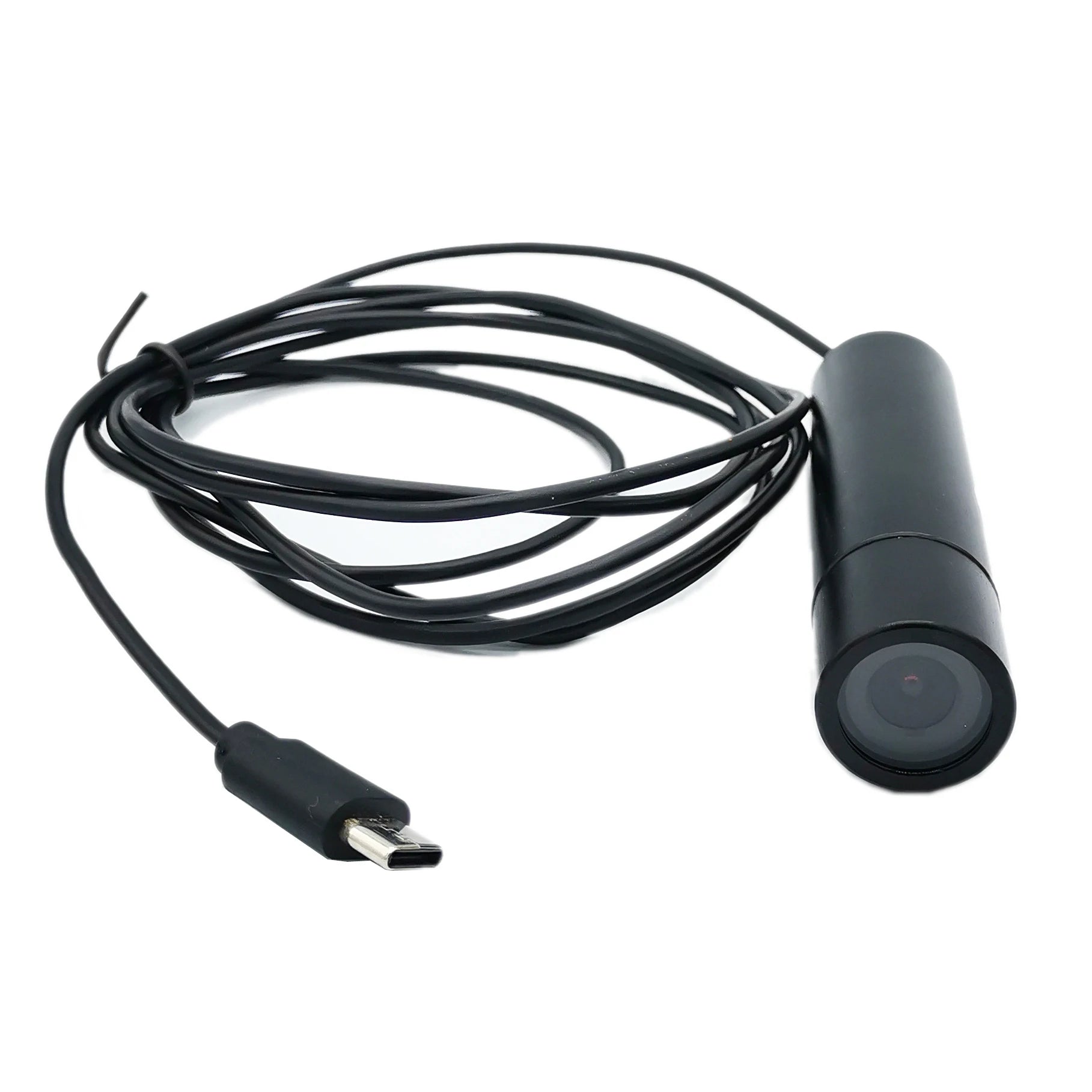

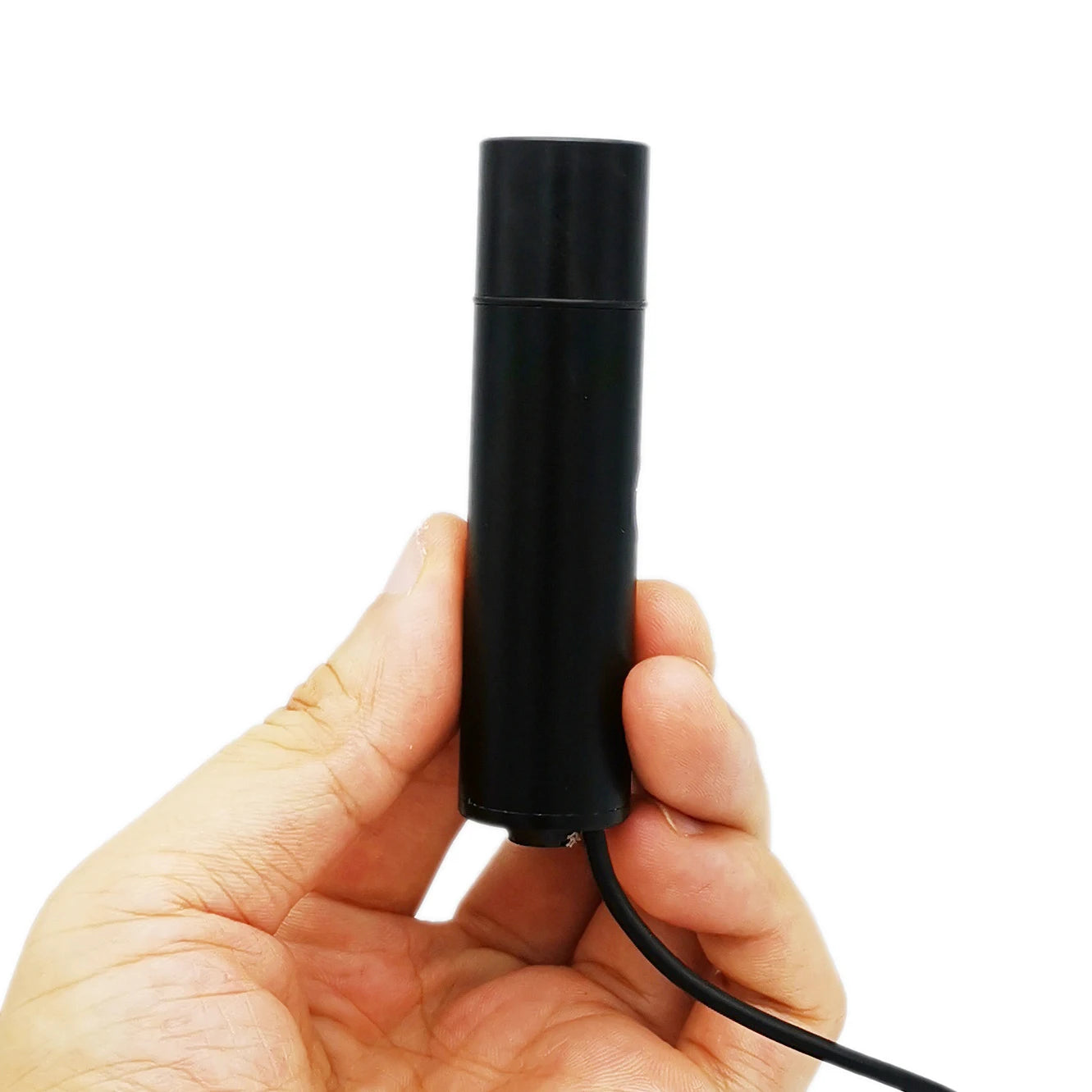

item : USB Type-C OTG Mini Bullet USB Camera

keyword : minibullet OTG usb camera

pixel : 1080p *&720P Models Optional

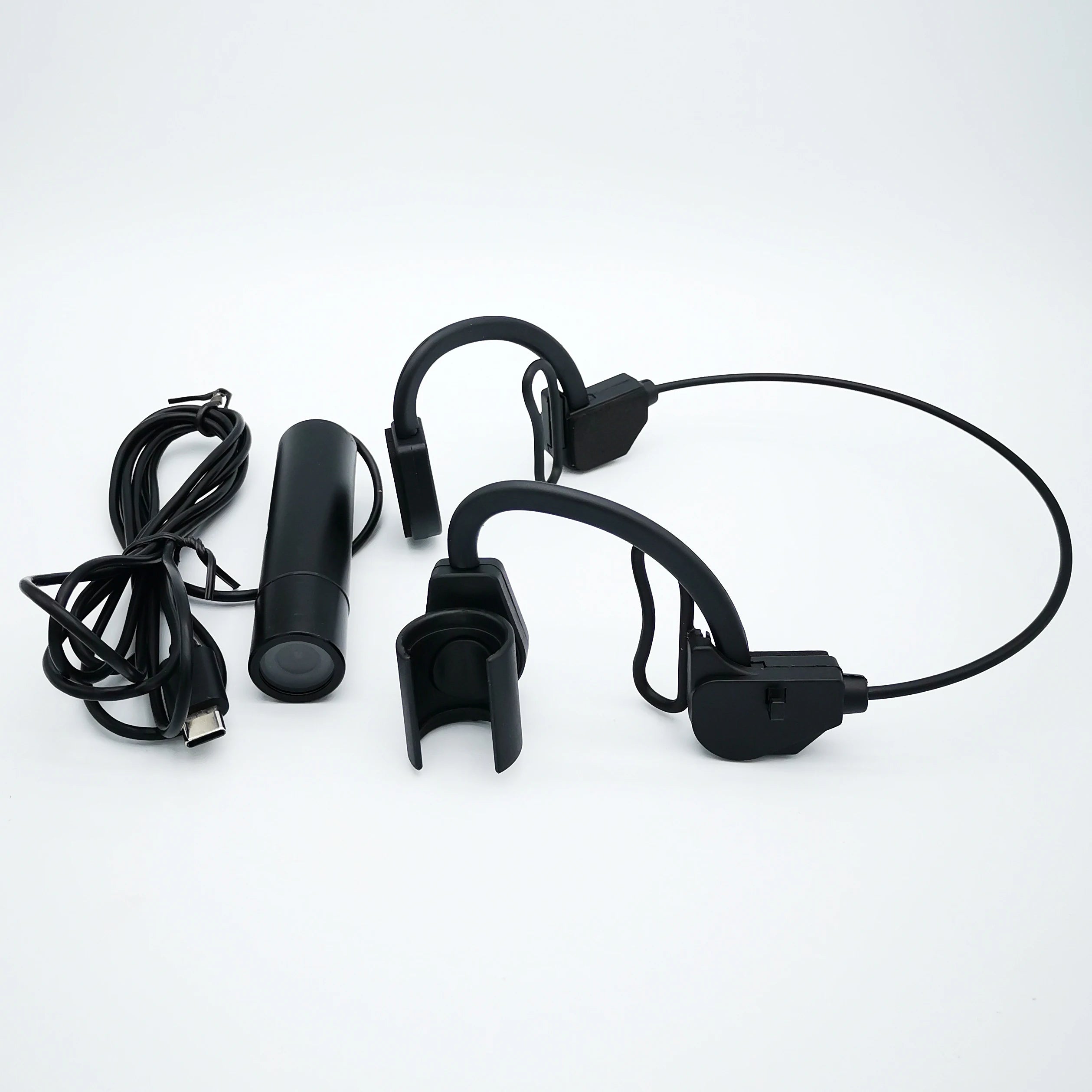

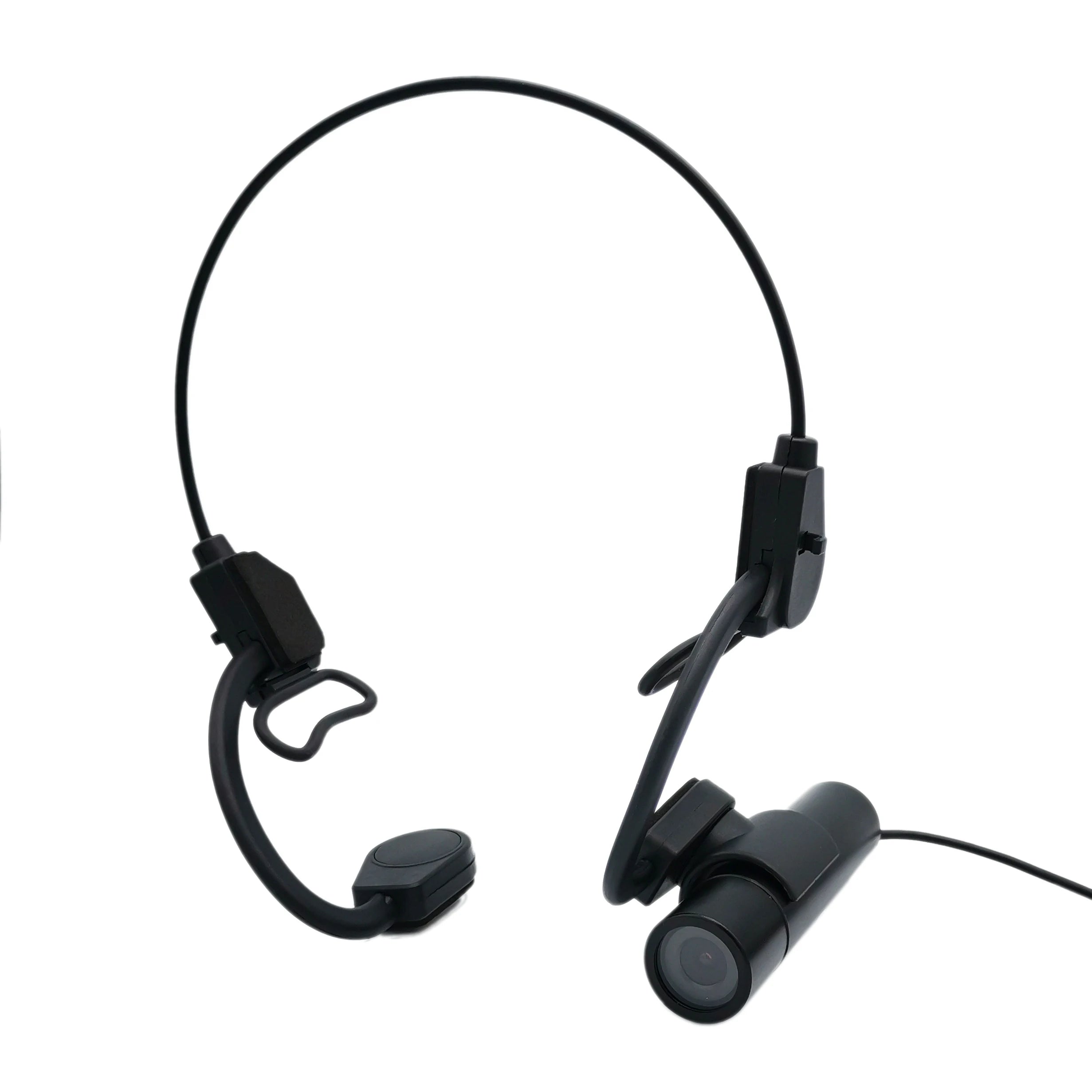

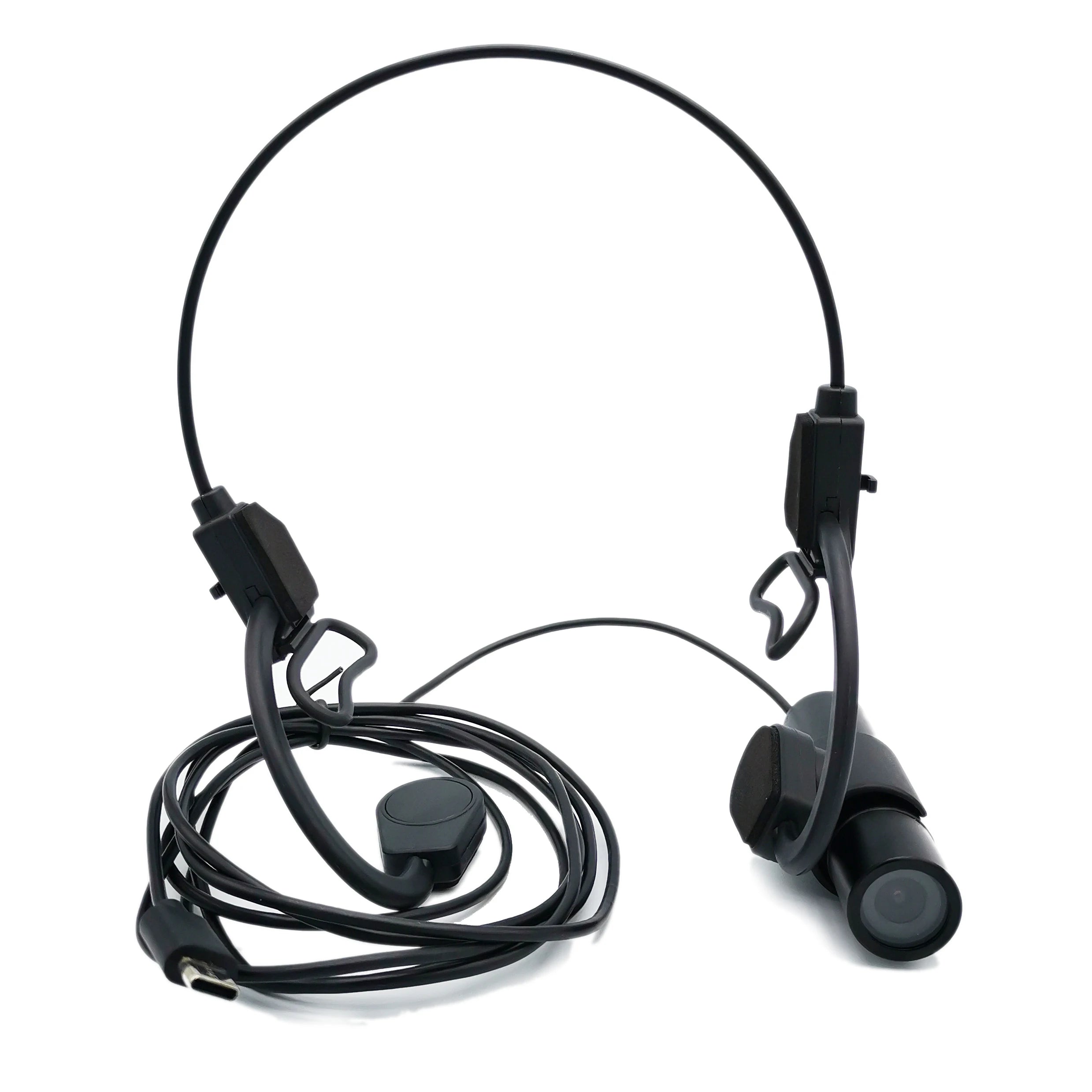

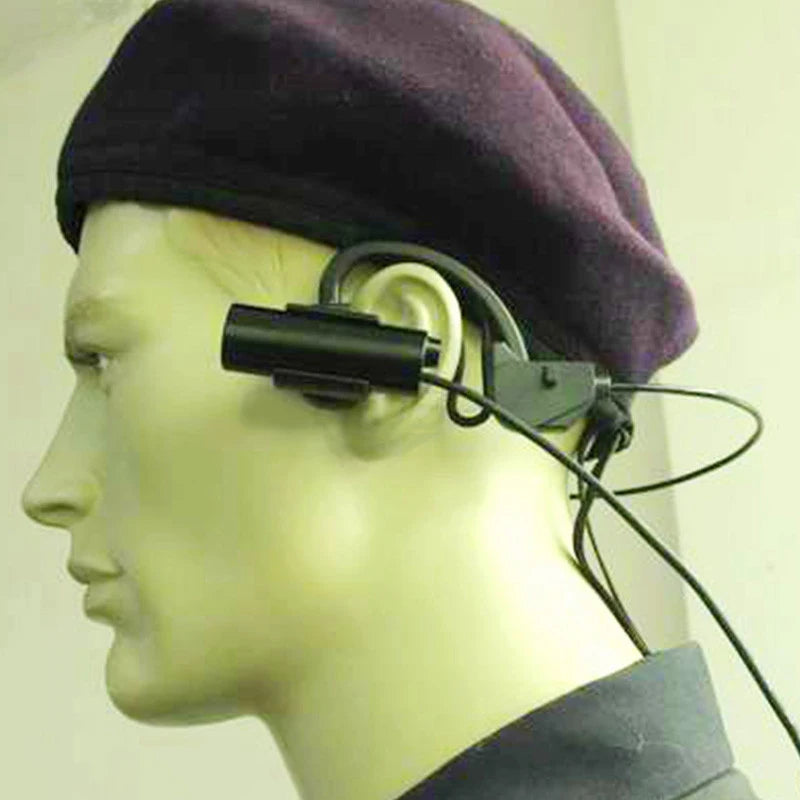

Mini Bullet Camera With Headset Bracket OTG Android Smartphone Device USB Camera Webcam For Helmet Police Webcast broadcast

Note: 1080P 720P models optional

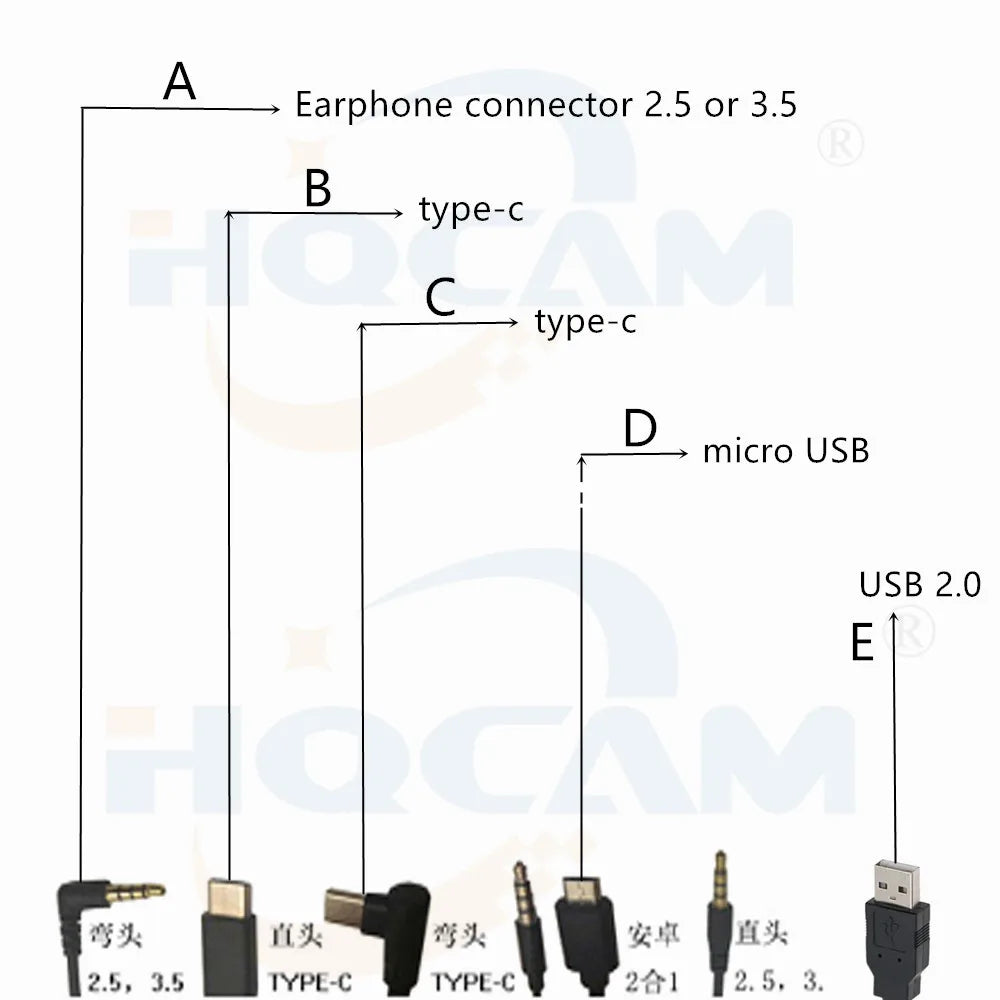

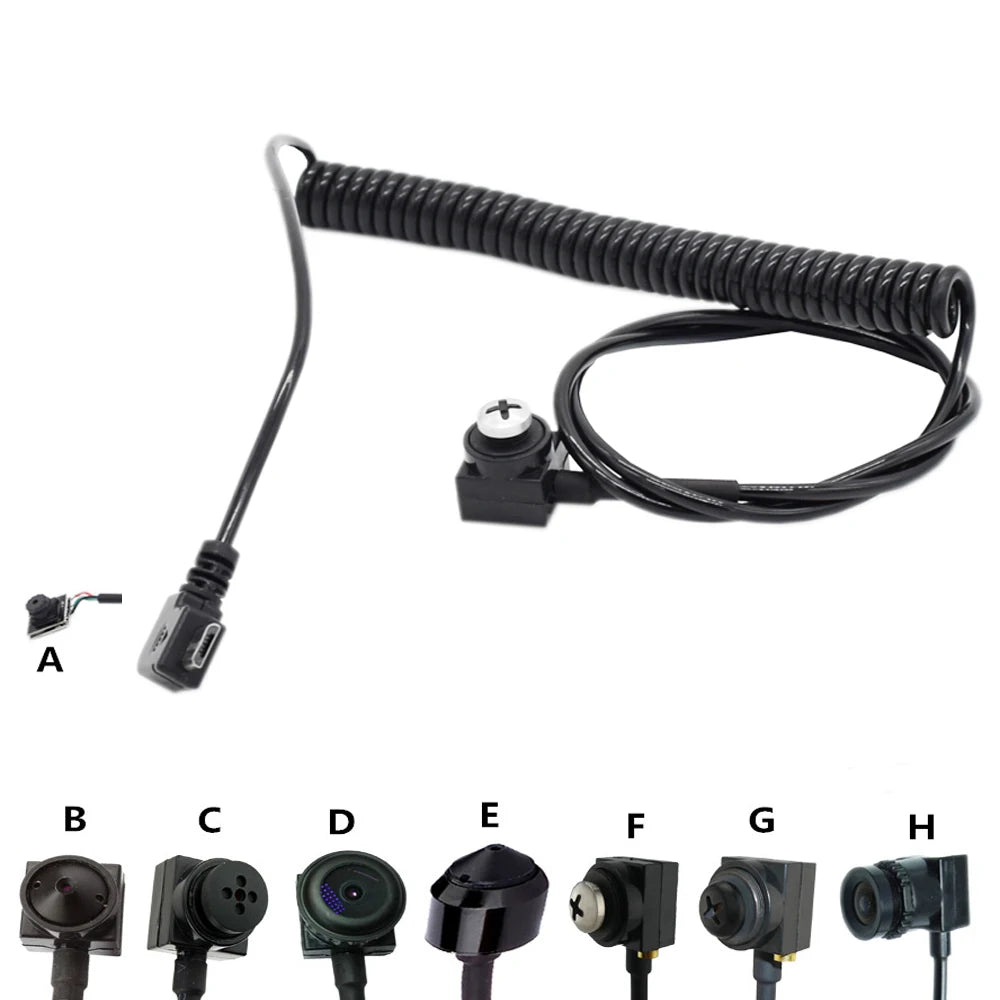

if you need other connector ,pls kindly contact with us for custom made !

for more products infomation ,pls go to our store page !

Note:This Camera not apply to all the Android Phone and Computer System.The compatible Phone and Computer System please refer to the following list or some new models.Please note that your phone must support OTG and UVC camera function, Android system above.

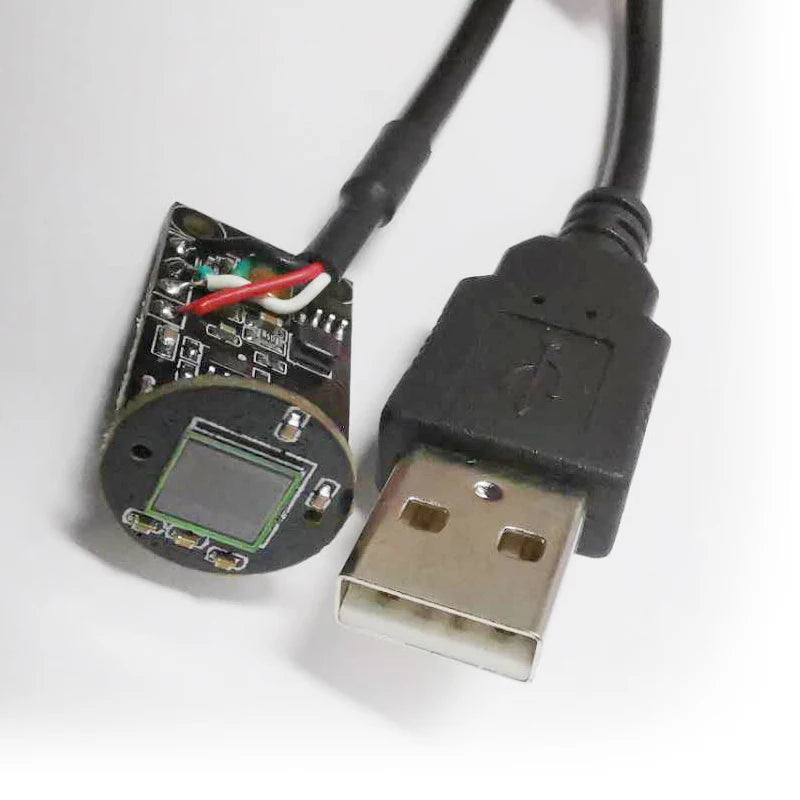

2.0Megapixel 1080P usb Mini camera

1.Easy to install and operation.

2.Low lllumination, high quality image.

3.Full TV System, used worldwide.

4.Video smooth without dragging shadow and long life time .2MP more clear.

5. 3.7mm pin hole lens or other lens optional (contact us!)

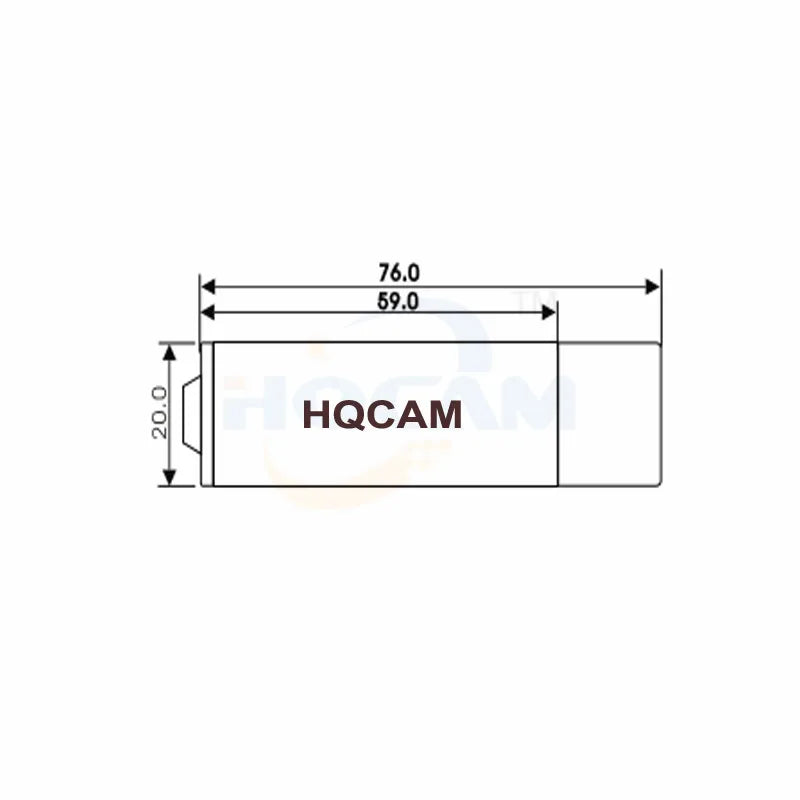

6. Super mini size,only 20*76 mm.

7. Low power consumption and low maintenance.

· Image sensor 1/2.7" CMOS, 0.1Lux, 2.0MP imag

· Free Driver microUSB (UVC)

· HIGH SPEED, compression USB 1.1

· Default setting (30fps@1920*1080p)

· Manual focus lens

· Angle of view around 60 degrees (without any distortion)

· Compression YUY2 & MJPEG

· Support Windows 2000; Windows XP; Windows VISTA; Windows 7 and later;

· Linux(In 2.6.18 above the kernel version);Mac ps3; Android system

· Dimension19mm Diamater

· USB Power: 5V±10%DC,50mA

· Used:intelligent machine/Android Device, especially Banks'ATM,AD machine.

· Can be customized by your requirements

Detailed Specifications Of The Parameters

1/2.7" Color CMOS

Effective Pixels

1920(H)x1080P(v)1280(H)x720(V), 640(H)x480(V), 352(H)x288(V), 320(H)x240(V) resolutions

Synchronizing system

Progressive Scan

VGA(640X480), CiF(352X288), SiF(320X240), QSiF(176X144, ),C iF(160x120)

More then 48 dB (AGC Off)

Min. Illumination

Auto / Manual(Shutter Speed & AGC Control)

Auto / Fixed / Indoor / Initial / Outdoor

Gamma Characteristic

Brightness / Contrast / Gamma / Saturation

BW Image / Mirror / Flip / Back Light / Flickerless

Operating current

125mA / regulated 5.7VC in

3.6mm Lens or other lens optional

Operating Temperature

0°C∼ 40°C (Humidity : 0% RH∼ 80% RH)

USB2.0/Type-C/OTG Micro USB (Complies with USB 2.0)

Measurement (mm)

Weight (Approx. G)

1.0Megapixel 720P usb Mini camera

Detailed Specifications Of The Parameters

Effective Pixels

1280(H)x720(V), 640(H)x480(V), 352(H)x288(V), 320(H)x240(V) resolutions

Synchronizing system

Progressive Scan

VGA(640X480), CiF(352X288), SiF(320X240), QSiF(176X144, ),C iF(160x120)

More then 48 dB (AGC Off)

Min. Illumination

Auto / Manual(Shutter Speed & AGC Control)

Auto / Fixed / Indoor / Initial / Outdoor

Gamma Characteristic

Brightness / Contrast / Gamma / Saturation

BW Image / Mirror / Flip / Back Light / Flickerless

Operating current

125mA / regulated 5.7VC in

3.6mm Lens or other lens optional

Operating Temperature

0°C∼ 40°C (Humidity : 0% RH∼ 80% RH)

USB2.0/Type-C/OTG Micro USB (Complies with USB 2.0)

Measurement (mm)

Weight (Approx. G)

Packing included:

1x headset bracket
